ALFRA AP 800

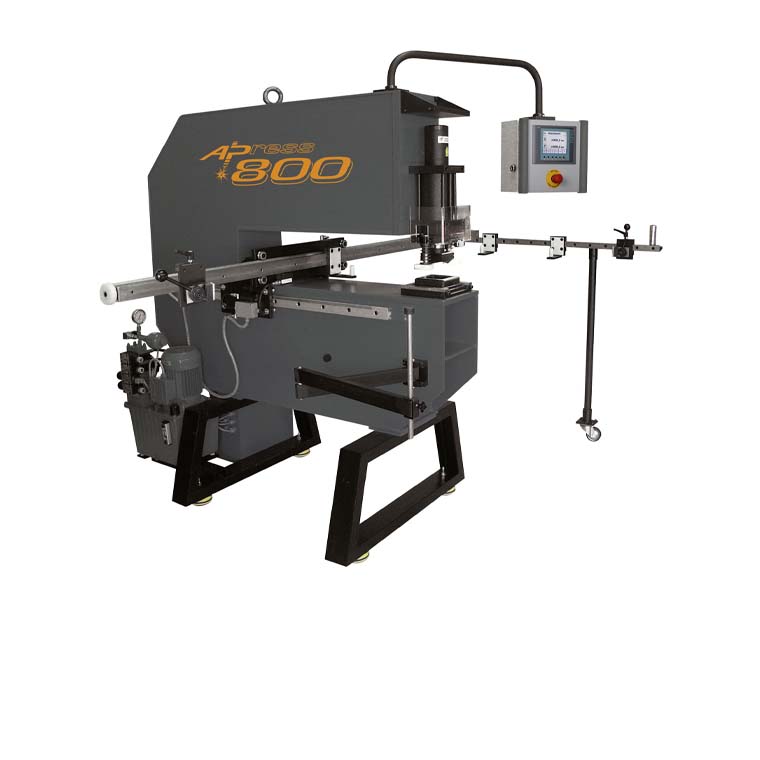

A Hydraulic Punching Machine designed to enable quick punching of round square rectangular and custom formed holes on control cabinets and doors up to 86 ” X 39 “.  It can also punch back panels with folded edges up to 1 1/4″ and conduit boxes up to 12” in depth.  The AP 800 has a throat depth of 800 mm (31  inches) and an X and Y Axis (length and width) adjustable fence.  You can also easily change punches with panel still place.



The AP 800 has a solid welded press mounted on a stand with leveling feet.  It comes complete with an Electronic Control Panel with digital indicator hydraulic cylinder and quick coupling piston with anti torsion guard hydraulic unit and safety foot switch.

Description:

        Heavy Duty steel weldedpunching frame.

        Heavy Duty support legs with leveling feet.

        Dual action hydrauliccylinder

        Accepts Laser pointer(optional) for accurate and precise punching.

        Different die holdersavailable (also for punching close to edges).

        Fast and accurateserial punching.

        Tooling change outs inseconds.



TechnicalData:

Throat depth:                                        31

 Cylinder stroke:                                 2 13/16

Punching power:         F 135 kN at 190 bar

Weight:                        850kg

Punchingcapacity:

     – Roundholes from 1/8 to 4

     – Squareholes up to 4 7/16

– Sheetmetal F 370 N/mm upto 1/8

     – Stainlesssheet steel F 600 N/mm  upto 3/32

     – AluminiumF 22  up to 3/16

     – Punchableplastics up to 3/16
