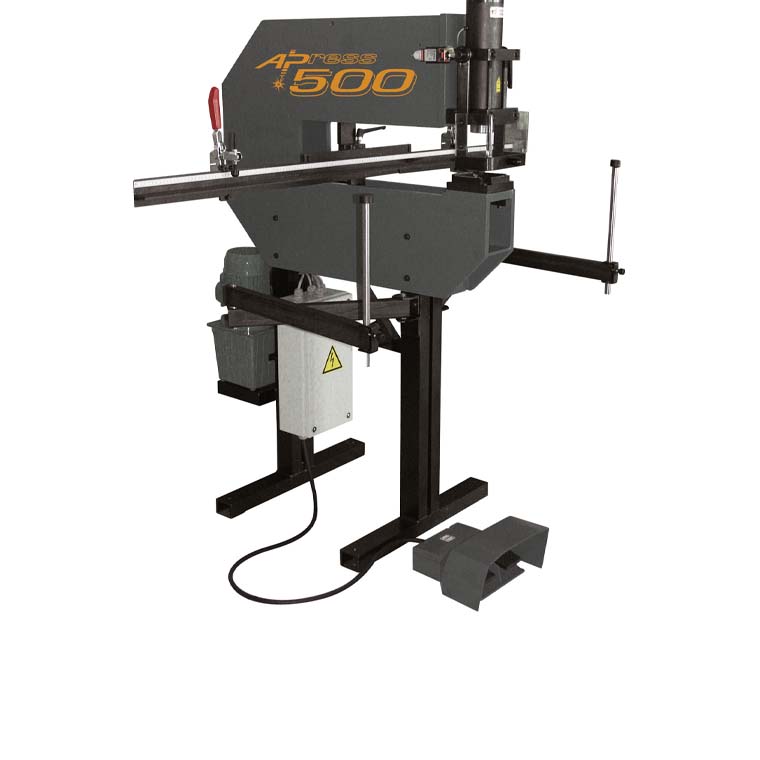

ALFRA AP-500

A Hydraulic Punching Machine designed to enable quick punching of round square rectangular and custom formed holes on control cabinets and doors up to 78″ x 39″.  It can also punch back panels with a folded edges up to 1 3/16″ and conduit boxes up to 12″ in depth.

Description:

        stable punching body working pedestal for optimum workinput

        dual action hydraulic cylinder ready for use with a laserpointerfor a precise indication of the tool center.

        Piston rod (made of tempered stainless steel dia. 2 3/16)torsion-proof  positioned.

        Die bed fixed to the press frame with HD attachment screws

        Safety work hold down system.

        Double circuit hydraulicunit with electric pump oil tank and magnetic valves.

        Safety foot switch withdouble pedal.

TechnicalData:

Throat depth with fence :                         19

Throat depth without fence:                     21

Punching power:                                       F 48 kN

Stroke:                                                         2 9/16

Input:                                                           037 kW

Voltage:                                                        230 V

Weight:                                                        440lbs

Total height:                                                60

Working height:                                          37

Width of press frame:                                5

Depth of press frame:                               37

Space required approximately.:              5x 5

Punchingcapacity:

– Round holes from 1/8 2 7/16

– Square holes up to 1 x 1

– Special shape puncher with max. diagonal  2 3/8
