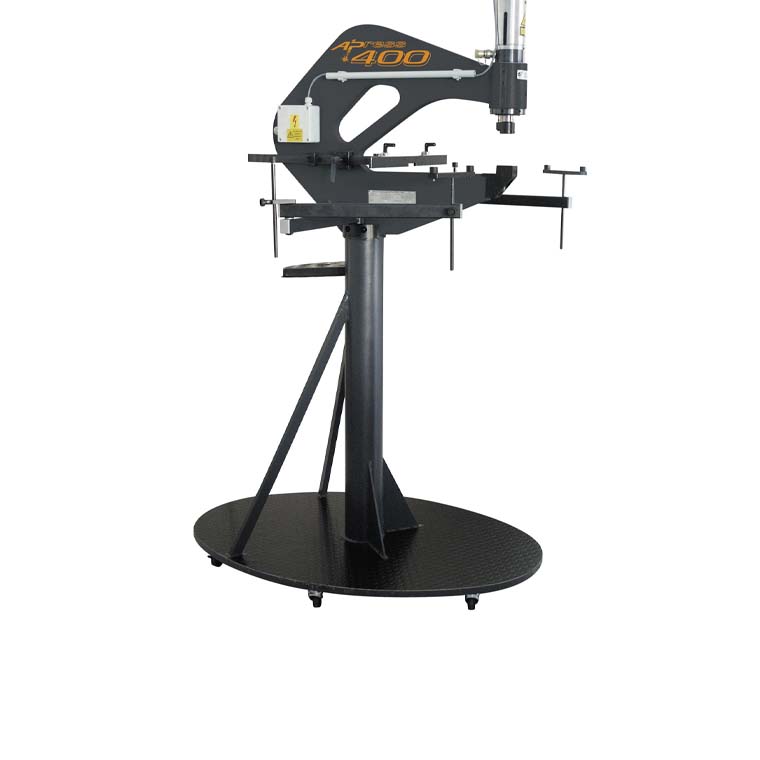

ALFRA AP-400

A Hydraulic Punching Machine on a pedestal that is designed to enable quick punching of round square rectangular and custom formed holes on conduit boxes control cabinets and doors

 Description:

        stable punching body working pedestal for optimum workinput

        single action hydrauliccylinder

        ready for use with laserpointer to optically indicate tool center (optional)

        different die holdersavailable (also for punching close to edges)

        Tool change outs in seconds

TechnicalData:

Throat depth:                       15 with fence

                                                17 without fence

Cylinder stroke:                                           2

Opening width between tools:             1 3/16

Punching power:                  F 46 kN at 600 bar

Weight:                                                484 lbs

Height:                                                       57

Punchingcapacity:

Round holes from                              1/8to 1 9/16

Square holes up to                      11/8 x 1 1/8

Rectangular holes up to           13/16 x 1 3/16

or with a max. diagonal of                     1 9/16

Machinable material thicknesses:

Sheet metal F 370 N/mm up to 3/32

Stainless sheet steel F 600 N/mm

up to 1/16

Aluminium F 22 up to 5/32

Punchable plastics up to 5/32
